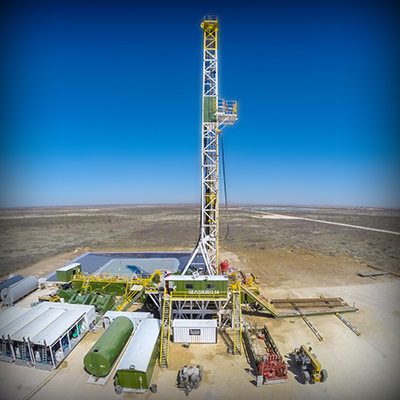

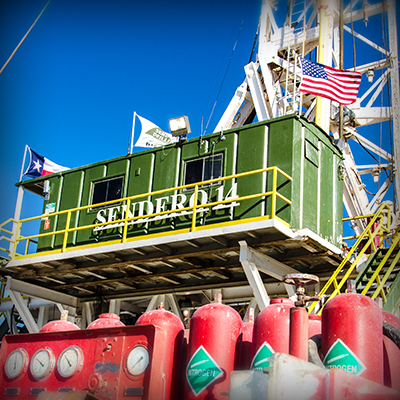

Sendero Rig #14

Working Depth:

• 20,000 ft

Drawworks:

• OIME SD-7, 1500 HP, 1 3/8 Drill Line, El Magco 6032 Brake

Power:

• 2 GE 752 Series type traction motor

Pump #1:

• RSF 1600 (Triplex 1600 HP) 7500 PSI
• Powered by: 2ea. GE 752 type Traction Motor

Pump #2:

• RSF 1600 (Triplex 1600 HP) 7500 PSI
• Powered by: 2 ea. GE 752 Traction Motor

Pump #3:

• Pump 3: RSF 1600 (Triplex 1600 HP) 7500 PSI
• Powered By: (1) Caterpillar 3512 Engine (1475hp) w/40HP Electric Motor f/charger

Mast:

• DSI 136' x 21' rated at 750,000# static hook load

Substructure:

• DSI 20' substructure Box on Box, rotary capacity at 550,000#, 300,000 set back KB 20.5'

Traveling Equipment:

• Block: 500 Ton NOV

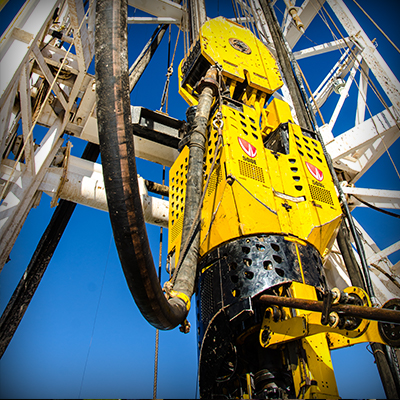

• Top Drive: AC NOV TDS11 500 Ton
• Swivel:

Rotary Table:

• National C-275, 27 1/2"

Generators:

• SCR House: GCI 3 Generator x 4 SCR system
• 9'W x 35'L x9'H House
• Powered by: 3 Caterpillar 3512C Engines W/ Kato 1365 KW 1950 KVA Generators

BOP Equipment:

• Ram Preventor: 13 5/8 Double 5000#: LWS Type
• Annular Preventor: 13 5/8 5000#: Shaffer Type
• Closing Unit: Koomey Type: 5 Station

Drill Pipe:

• 650 Joints Range 2, 5" S-135 Drill Pipe

Drill Collars:

• (24) 6-1/4"O.D. x 2-1/4"I.D. x 30' Long - Nominal-6ea. 8" Collars

Mud System:

• Working Pits: 2 working pits: 8'6"H x 10'W x47' L (1100 bbl)
• Mud mixing pump: (2) 6X5 Centrifugal pump with (2) 75 HP electric motors

Solids Control Equipment:

• Shale Shaker: (3) Derrick style linear shakers
• Desilter: Derrick 10 cone desilter
• Desander: Derrick 2 cone desander
• Mud Movers: (2) 6 X 5 Centrifugal Pumps with 60 HP Electric Motors
• Separator:

Auxiliary Equipment:

• Water tank: 2 ea. 500 bbl
• Fuel tank: 10,000 gallon capacity
• Air Compressors: (1) Cold Start piston type, 2- screw type electric compressors
• Wireline Unit: Shop Built
• Choke Manifold: Horn Equiment 5000#
• Crew Quarters: Amerimex
• Rig Managers Quarters: Amerimex
• Stealthwalker Walking System w/ HPU and all plumbing
• Festune Package w/Flow line, Low and High pressure lines

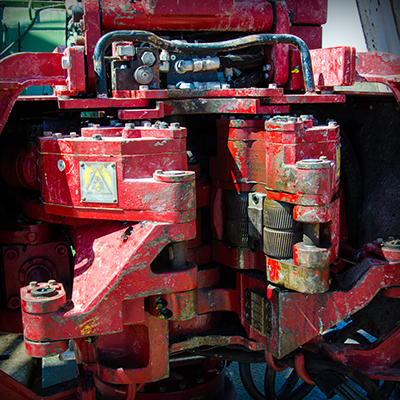

• NOV ST 80 Torque Wrench

Miscellaenous Equipment:

• Centrifugal Pumps
• Equipment Air Hoist
• Tongs, slips, elevators
• Pipe Racks
• Automated Power Catwalk 3000
• Handling subs
• Spare parts & Hoses
• Electrical Suitcases
