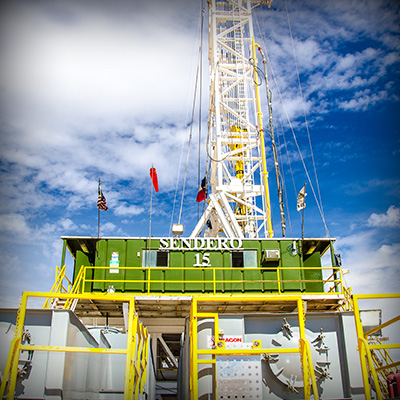

Sendero Rig #15

Rig #15 Walking Video

Working Depth:

• 25,000 ft

Drawworks:

• Continental Emsco C1 Type ll w/ 1 3/8 Drill Line w/Eimagco 7040 Auxiliary Brake

Power:

• (2) GE 752 Series type traction motor

Pump #1:

• RSF-FB 1600 Triplex (1600 hp)
• Powered by: 2 ea.GE 752 Type Traction Motors 7500 PSI Fluid Ends

Pump #2:

• RSF-FB 1600 Triplex (1600 hp)
• Powered by: 2 ea.GE 752 Type Traction Motors 7500 PSI Fluid Ends

Pump #3:

• Gardner Denver PZ-11 1600 HP Triplex Pump
• Powered by: (1) Caterpillar 3512 Engine (1475hp) w/40HP Electric Motor f/charger

Mast:

• Superior 136' x 25' W, Rated at 750,000# static hook load,

Substructure:

• Superior 25' 6"substructure Box on Box, roatary capacity at 750,000#,500,000# set back KD 26'

Traveling Equipment:

• Block: McKissicck, 400 Ton Block
• Top Drive: NOV TDS 11 500 Ton Top Drive AC Electric W/ VFD Package
• Swivel: Gardner Denver 400 Ton

Rotary Table:

• Mud King, 27 1/2"

Generators:

• SCR House: Omron 4 generator x 3 SCR system
• 9'W x 40'L x9'H House
• Powered by: (4) Detroit V2000 diesel engines with MTU 1000 KW generators

BOP Equipment:

• Ram Preventor:13 5/8 Double 5000#: LWS Type
• Annular Preventor:13 5/8 5000#: Shaffer Type
• Closing Unit: Koomey Type: 5 Station

Drill Pipe:

• 4 1/2 or 5" drill pipe

Drill Collars:

• (24) 6-1/2"O.D. x 2-1/4"I.D. x 30' Long (6) 8" slick drill collars, (12) jts 4 1/2" heavy weight drill pipe

Mud System:

• Working Pits: 2 working pits: 8'6"H x 10'W x47' L (1000 bbl)
• Mud mixing pump: (2) 6X8 Centrifugal pump with (2) 60 HP electric motors

Solids Control Equipment:

• Shale Shaker: (3) Fluid System linear shakers
• Desilter: Derrick 10 cone desilter
• Desander: Derrick 2 cone desander
• Mud Movers: (2) 6 X 8 Centrifugal Pumps with 60 HP Electric Motors
• Separator

Auxiliary Equipment:

• Stealthwalker Walking System w/HPU and all plumbing
• Festune Package w/flowline, Low and High pressure Lines
• NOV ST80C Torque Wrench
• Wireline Unit: Mathey wireline
• Choke Manifold: Horn Equiment 5000#
• Crew Quarters: Amerimex
• Rig Managers Quarters: Amerimex
• Water tank:2 ea. 500 bbl
• Fuel tank: 12,000 gallon capacity
• Air Compressors:(2) Atlas Copco 20 hp screw type, (1) Gardner Denver cold start

Miscellaenous Equipment:

• Centrifugal Pumps
• Equipment Air Hoist
• Tongs, slips, elevators
• Pipe Racks
• Cat walk
• Handling subs
• Spare parts & Hoses
• Electrical Suitcases
• Pipe Spinner / Kelly Spinner
