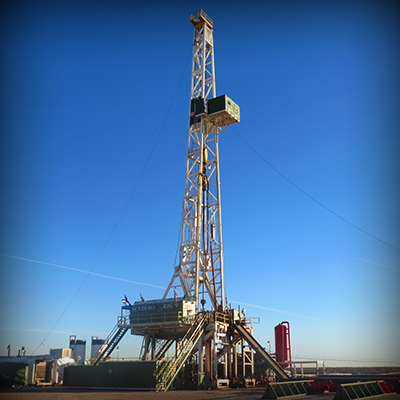

Sendero Rig #9

Rig #9

Sendero Drilling Logo

Working Depth: 17,000 ft

Drawworks:

  • National 80 UE 1200 HP Single Drum Drawworks, 1 3/8 drill Line, W/ V-200 Parkersburg Brake
9

Working Depth:

  • 17,000 ft

Drawworks:

  • National 80 UE 1200 HP Single Drum Drawworks, 1 3/8 drill Line, W/ V-200 Parkersburg Brake

Power:

  • 2ea. GE 752 1000 HP Traction Motors

Pump #1:

  • Continental Emsco FB 1600 Triplex Pump (1600 HP)
  • Powered by: 2 ea. GE 752 Traction Motors

Pump #2:

  • Continental Emsco FB 1600 Triplex Pump (1600 HP)
  • Powered by: 2 ea. GE 752 Traction Motors

Pump #3:

  • Weatherford MP 16
  • Powered By: Caterpillar 3512B

Mast:

  • Dreco 136' Sling Shot- 660,000 # Static Hook on 12 lines: 600,000# Static Hook on 10 Lines

Substructure:

  • Dreco 22' Floor 22' KB

Traveling Equipment:

  • Block: Emsco 400 Ton
  • Hook: Web Wilson 350 Ton
  • Top Drive: Warrior 250H W/ Power unit

Rotary Table:

  • National 27.5"

Generators:

  • 4 ea. 1050KW 600 Volt Generators
  • Powered By:4 ea. Catipillar 399 DITA Diesel Engines
  • Controlled By:INTEGRATED POWER SYSTEMS SCR Control System in a 9 W X 40 L Skidded House

BOP Equipment:

  • Ram Preventor:13 5/8" 5000# Double Shaffer LWS Type
  • Annular Preventor: 13 5/8" 5000#: Shaffer Type
  • Closing Unit: Koomey Type: 5 Station

Drill Pipe:

  • 5" S-135, 19.50# Range 2 Drill Pipe Or 4.5" G105, 1660# Range 2

Drill Collars:

  • (6) 8" & (24) 6 1/4" Drill collars

Mud System:

  • Working Pits: (2) 800 bbl. Total Capacity
  • Premix Pit: (1) 80 bbl. Capacity
  • Mud mixing pump: (2) 6X8 Centrifugal pump with 75 HP Electric Motor

Solids Control Equipment:

  • Shale Shaker: (3) Vortex Fluid System 4 panel
  • Desilter: Derrick - 12 Cones
  • Desander: Derrick 2 cones
  • Mud Movers: (2) 5 X 6 Centrifugal Pumps with 50 HP Electric Motors

Auxiliary Equipment:

  • Water tank: (2) 500 bbl. Capacity
  • Fuel tank: "12,000 gallon capacity"
  • Air Compressors: (1)Gardner Denver Screw Type Driven by 15 HP Motor and (1) Sullivan Palatek 30DG
  • NOV ST80C Torque Wrench
  • Wireline Unit: "0.092 Diameter 15,000'"
  • Water Pump:
  • choke manifold 5000#
  • Rig Managers Quarters - Crew House

Miscellaenous Equipment:

  • Centrifugal Pumps
  • Air Hoist
  • Tongs, slips, elevators
  • Pipe Racks
  • cat walk
  • Handling subs
  • Spare parts & Hoses
  • Electrical Suitcases
